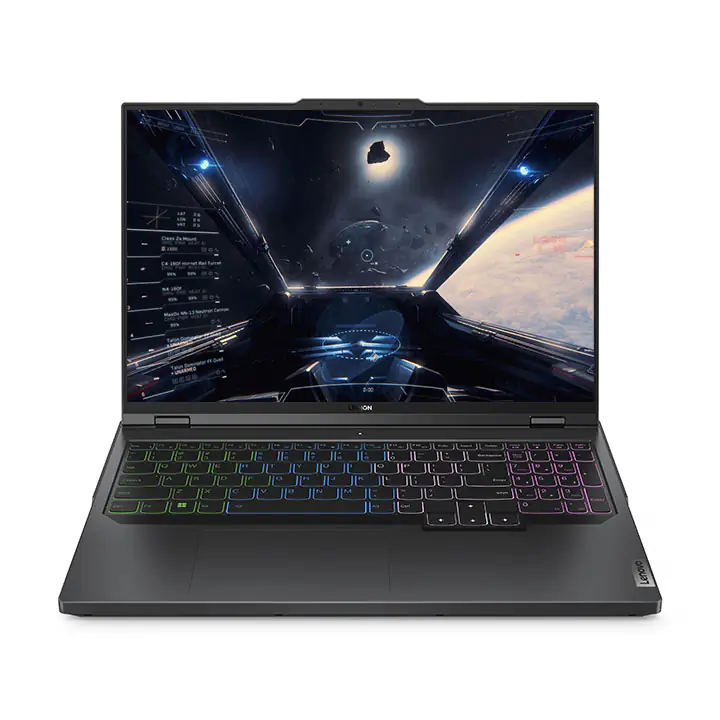

Lenovo Legion Pro 5 16” RTX™ 4060 Gaming Laptop Onyx grey (R7 7745HX/16GB/1TB/Win 11H)
| OS | Windows® 11 Home, English Bundled Software: Office Trial |
| Processor | AMD Ryzen™ 7 7745HX (8C / 16T, 3.6 / 5.1GHz, 8MB L2 / 32MB L3) |
| Graphic | NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W |
| Chipset | AMD SoC Platform |
| Display | 16" WQXGA (2560x1600) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®, FreeSync™, G-SYNC®, Low Blue Light |
| Total System Memory | 16GB (2x 8GB SO-DIMM DDR5-5200) Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable Max Memory: Up to 32GB DDR5-5200 offering |
| Storage | 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Storage Support: Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 1TB Storage Slot: Two M.2 2280 PCIe® 4.0 x4 slots |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers | Stereo speakers, 2W x2, optimized with Nahimic Audio |
| Camera | FHD 1080p with E-shutter |
| Microphone | 2x, Array |
| Battery | Integrated 80Wh |
| Power Adapter | 300W Slim Tip (3-pin) |
| Special Features | Legion Coldfront 5.0 cooling system |
| Design | Color Calibration: Factory Color Calibration Keyboard: 4-Zone RGB Backlit, English Touchpad: Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) Case Color: Onyx Grey Surface Treatment: Anodizing Case Material: Aluminium (Top), PC-ABS (Bottom) |
| Connectivity | Ethernet: 100/1000M (RJ-45) WLAN + Bluetooth: Wi-Fi® 6E, 11ax 2x2 + BT5.2 Standard Ports: 1x USB 3.2 Gen 1 (Always On) 3x USB 3.2 Gen 1 1x USB-C® 3.2 Gen 2 (support data transfer and DisplayPort™ 1.4) 1x USB-C® 3.2 Gen 2 (support data transfer, Lenovo® Power Delivery 140W and DisplayPort™ 1.4) 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Power connector |
| Security | Security Chip: Firmware TPM 2.0 Enabled Other Security: E-shutter |
| Certifications | Green Certifications: ErP Lot 3 RoHS compliant Other Certifications: TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution) |
| Dimensions and Weight | 363.4 x 260.35 x 22.45-26.75 mm (14.31 x 10.25 x 0.88-1.05 inches) Less than 2.5 kg (5.5 lbs) |
4/5
Based on 1 reviews.
Ian Burnby
Jul. 04, 2024 Happy gamer
I read reviews before purchasing, most of them very favorable. It did not disappoint. I would rate it higher but the reviews were right about shorter battery life and loud at max fans.
Its a gaming laptop. Loud fans at max load are the norm.
I havent tested battery for just watching videos or doing work. I keep it plugged in. If power does go out though it would give you ample time to save progress or get to safe place in a mmorpg.
The screen is great though. I never had a screen above 75hz so wasnt sure 165hz would make a noticeable difference. It definitely does. Buttery smooth.
Graphics wise it slightly lags behind my desktop 3060ti but still allows for mid to high on games like dead island 2.
The processor is slightly better at rendering things in blender and slicing in ultimaker cura for 3d. Im comparing it to an intel i9 11900.
In conclusion. Im happy. I would be happier with more space and ram but those are upgradeable. |
